AFC-PRO 8 Lane Box Turtle Multi Filament Controller PCB

AFC-PRO 8 Lane Box Turtle Multi Filament Controller PCB

Regular price $152.99 USD
Regular price $179.99 USD Sale price $152.99 USD
Sale Sold out

From the wonderful mind over at Isik's Tech:

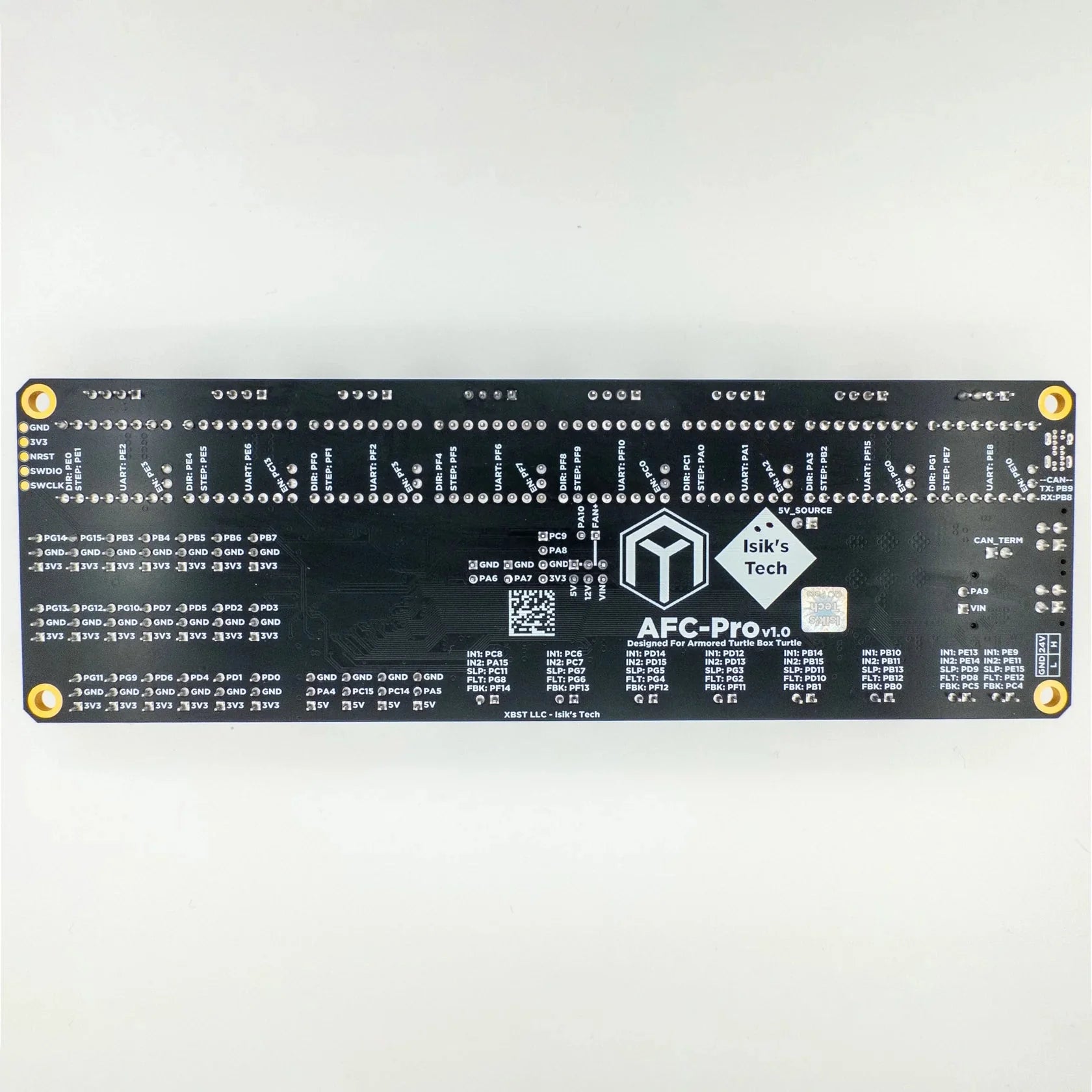

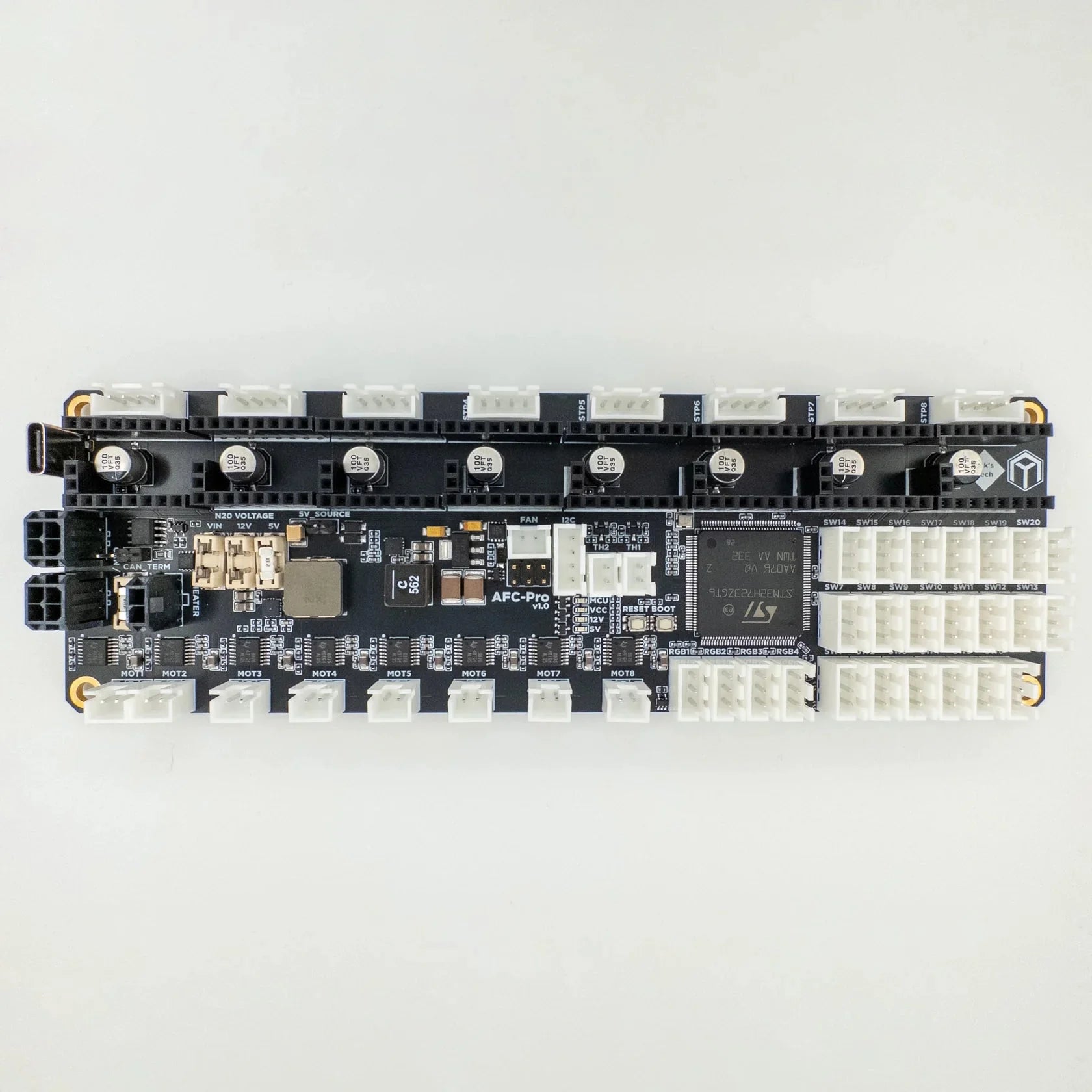

AFC-Pro is a PCB designed for Armored Turtle's Box Turtle system. It features:

  • 8x Stepstick Slots for TMC2209-based Stepsticks
  • 8x Brushed DC Motor Drivers supporting 5V, 12V and 24V Motors
  • 4x ARGB LED Connectors
  • 20x Switch Connectors
  • 2x Thermistor Connectors
  • I2C connector for Chamber Sensors Like our Nevermore Sensors
  • Fan Connector with Selectable Voltage and Speed Control
  • Heater Control
  • STM32H723 MCU
  • USB and CAN Support, With Spare CAN Connector for Daisy Chaining
  • 5V and 12V Buck Converters

GitHub Repository of the project: https://github.com/xbst/AFC-Pro/

GitHub Repository of Box Turtle: https://github.com/ArmoredTurtle/BoxTurtle/

AFC-Pro was in closed beta testing since February. We're now moving into production. This is a preorder at a discounted price, expected to ship in June.

MX3.0 and XH connectors are included. Stepsticks aren't included.
